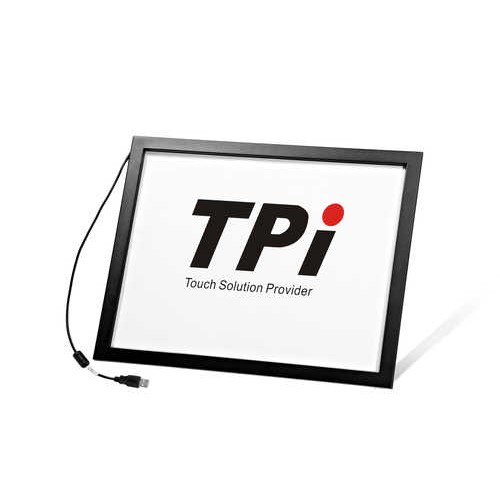

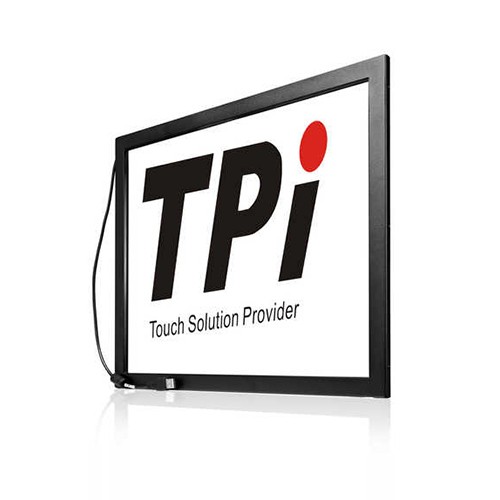

  • 27inch Infrared IR Touchscreen Plastic frame
  • 27inch Infrared IR Touchscreen Plastic frame
  • 27inch Infrared IR Touchscreen Plastic frame
  • 27inch Infrared IR Touchscreen Plastic frame
27inch Infrared IR Touchscreen Plastic frame 27inch Infrared IR Touchscreen Plastic frame 27inch Infrared IR Touchscreen Plastic frame 27inch Infrared IR Touchscreen Plastic frame

27inch Infrared IR Touchscreen Plastic frame

  • Product Item:ALIR
  • infrared touch
  • IR touch panel
  • touch frame
  • IR touch frame
  • IR touch panel  , IR touch frame  , touch overlay  , touch kit
    Inquiry Send Email

    Description


    Aluminium IR Touch Screen Feature :

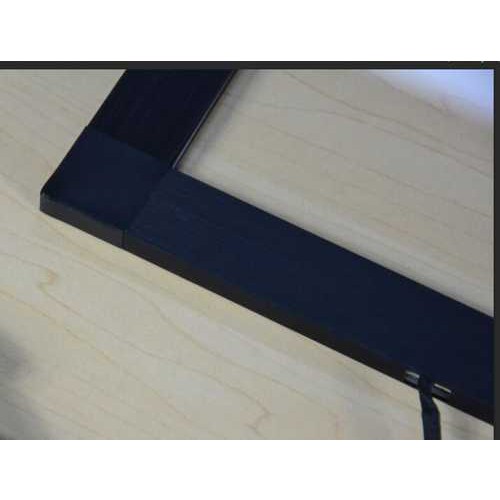

    ● Aluminium frame design Safe and Dustproof

    ● Standard 3mm vandal proof glass ( Without glass is available)

    ● Ultra thin & narrow frame, easy install ,integration.

    ● USB Touch interface, free driver for Windows , Linux. Plug & Play

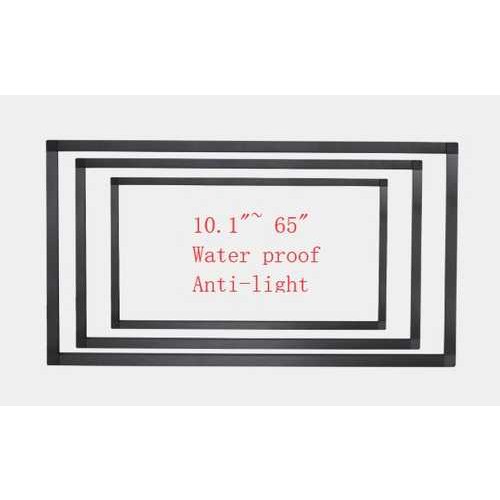

    ● Size from 10.1inch to 75inch , customization is acceptable

    ● Support Single touch , 2points,4points 6points and 10points touch


    Application:
    Digital Signage; Information Kiosk; Self-service machine ,Exhibitions; TV Channels; Education Whiteboard;
    Command Center and Boardroom; Commercial Transportation

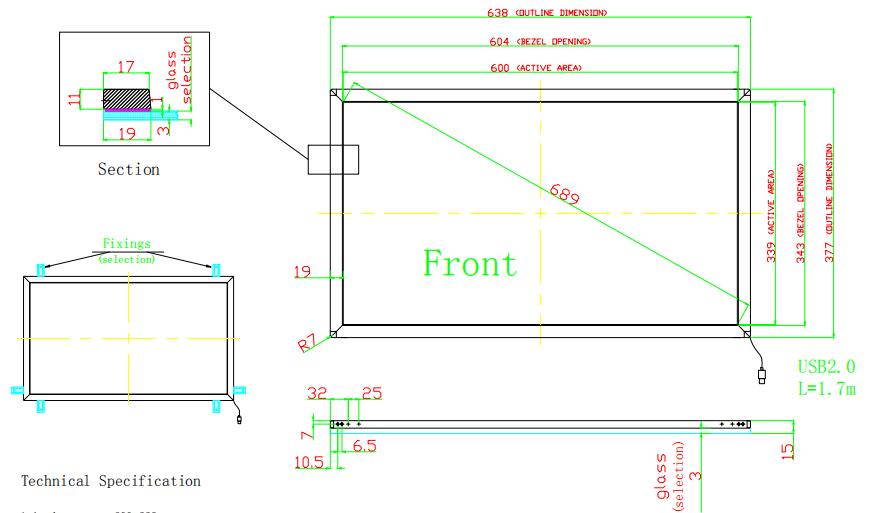

    MECHANICAL
    P/N AL Series IR Touch screen
    Overlay Thickness 8 mm
    Glass thickness 3mm vandal proof glass ( Without glass optional )
    Housing Aluminum frame
    TOUCH CHARACTERISTICS
    Input Method Finger or touch pen
    Touch Points single touch , 2points , 4points , 6points and more
    Touch Activation Force Non Minimum activation force
    Position Accuracy 1mm
    Resolution 4096(W)×4096(D)
    Response Time Touch: 6ms
    Drawing : 6ms
    Cursor Speed 120 dot/sec
    Glass 3mm glass Transparency : 92%
    Object Touch Size ≥ Ø5mm
    Touch Intensity Over 60 millions single touch
    ELECTRICAL
    Operating  Voltage DC 4.5V ~ DC 5.5V
    Power 1.0W (100mA at DC 5V)
    Anti -Static Discharge
    (Standard :B)
    Touch Discharge,Grade 2:Lab Vol 4KV
    Air Discharge,Grade 3:Lab Vol 8KV
    ENVIRONMENT
    Temperature operating:-10 °C ~ 60 °C
    storage:-30°C ~ 70 °C
    Humidity operating:20% ~85%
    storage:0%~95%
    Relative Humidity 40 °C,90% RH
    Anti - glare Test Incandescent lamp (220V,100W) ,
    operating distance over 350mm
    Altitude 3,000m
    Interface USB2.0 full speed
    Seal Ability IP64 Anti-Spill (Customizable to IP65 Waterproof)
    Working Environment Directly Under sunlight ,indoor and outdoor
    Application of Display Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks
    Software(Firmware)
    Operate system Windows 7,Windows 8,Windows 10, Andriod,Linux
    Calibration No need calibration , plug and play
