Description

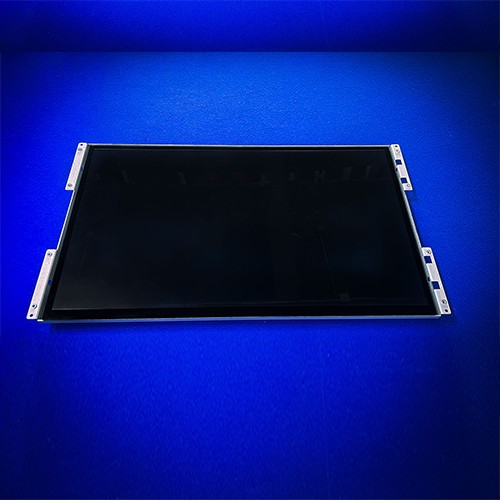

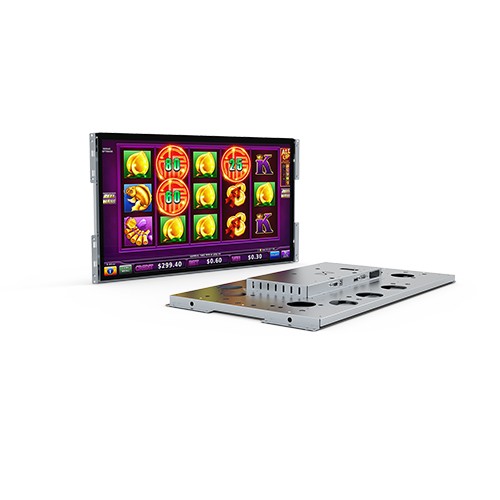

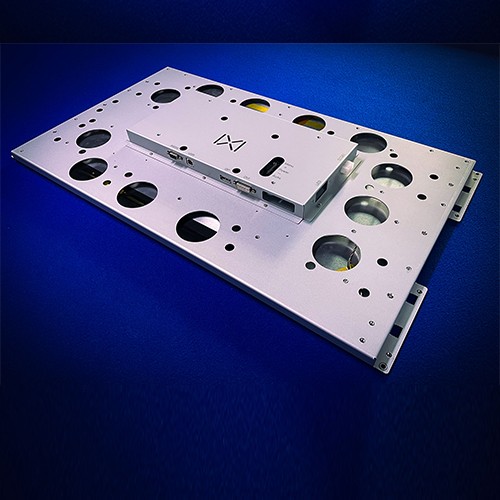

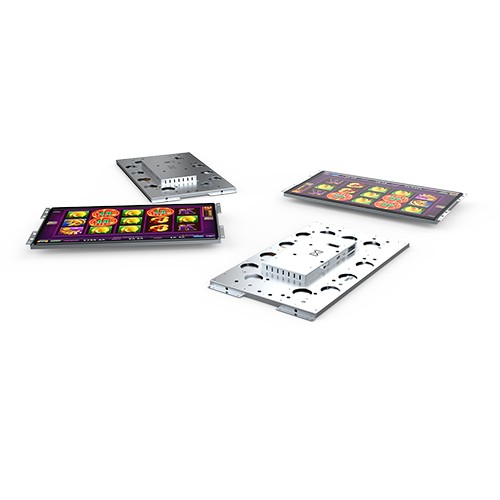

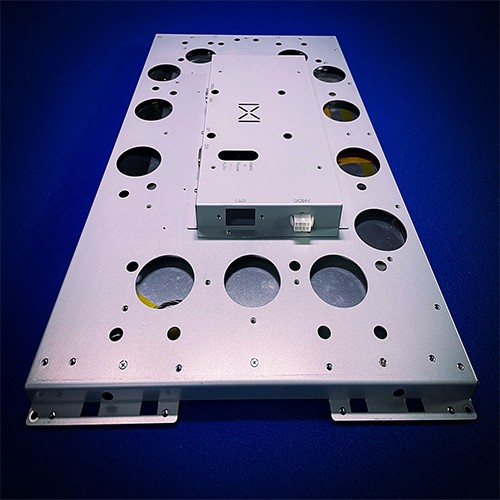

Bally V27/27/Bally Alpha 2 Pro V27/27 27inch TouchMonitor
The same size as the prototype, dedicated to upgrading and replacing touch monitor on

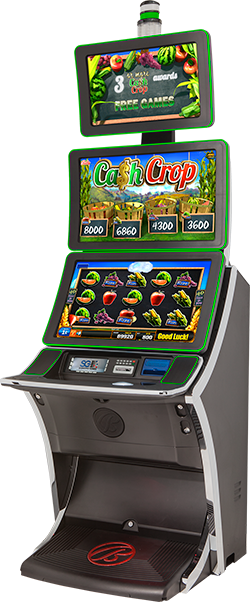

Bally V27/27/ Bally Alpha 2 Pro V27/27
Monitor P/N: 249666-10001
Monitor Model: L2765L31BY-BKL
Our Model: TOT2702EPC-VX
Technical parameters and characteristics：
Touch Technology
P-CAP
Touch Points
10Points（Max）
Touch Construction
G+G
Touch Cover
Glass T=1.8mm
Interface
USB-B Female RS232 DB9 Female
Luminousness
≥85%
Input Source
Finger
Touch Accuracy
2mm（Central）， 2. 5mm（Edge)
Response Speed
<10ms
Supports OS
windows xp/7 /8/10， Linux, Android, macOS
Technical Service
customize protocol for USB and RS232 interface
Firmware Upgrade
Supports Upgrade Firmware Via RS232 And USB Interface
