  • Aristocrat Helix Plus ideck
  • Aristocrat Helix Plus ideck
  • Aristocrat Helix Plus ideck
Aristocrat Helix Plus ideck Aristocrat Helix Plus ideck Aristocrat Helix Plus ideck

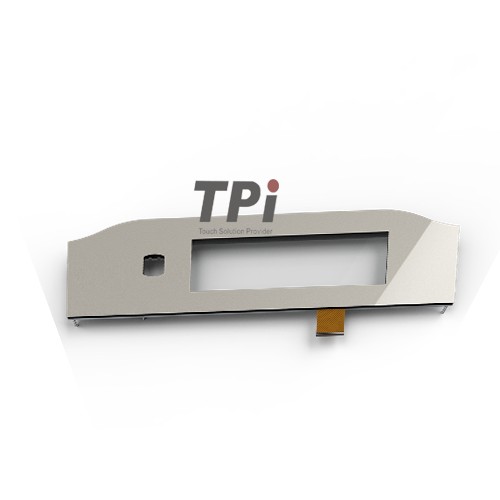

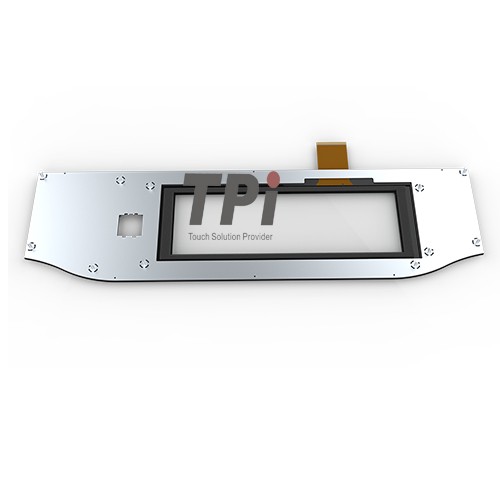

Aristocrat Helix Plus ideck

  • Helix Plus 11.8inch ideck
  • Aristocrat gaming machine
  • 11.8inch touch screen
  • Aristocrat 11.8inch
  • Helix plus 118inch ideck touch screen
    Inquiry Send Email

    Description

    Model Number :TPC118F-V2GC

    Button panel with touch for Aristocrat Helix XT/ Edge X/ Helix plus  11.8inch ideck touch screen, it works well from hardware and software , when you replace it , only need  put on our touch screen and plug in  cable ,start machine .

    Easy work to save your time .



    Technical parameters and characteristics:

    Touch Technology
    P-CAP
    Touch Points
    10Points(Max)
    Touch Construction
    G+G
    Touch Cover
    Glass T=1.8mm
    Interface
    USB-B Female RS232 DB9 Female
    Luminousness
    ≥85%
    Input Source
    Finger
    Touch Accuracy
    2mm(Central), 2. 5mm(Edge)
    Response Speed
    <10ms
    Supports OS
    windows xp/7 /8/10, Linux, Android, macOS
    Technical Service
    customize protocol for USB and RS232 interface
    Firmware Upgrade
    Supports Upgrade Firmware Via RS232 And USB Interface



    Inquiry Us
