  • IP65 Plastic frame IR touch screen
  • IP65 Plastic frame IR touch screen
  • IP65 Plastic frame IR touch screen
  • IP65 Plastic frame IR touch screen
IP65 Plastic frame IR touch screen  IP65 Plastic frame IR touch screen  IP65 Plastic frame IR touch screen  IP65 Plastic frame IR touch screen

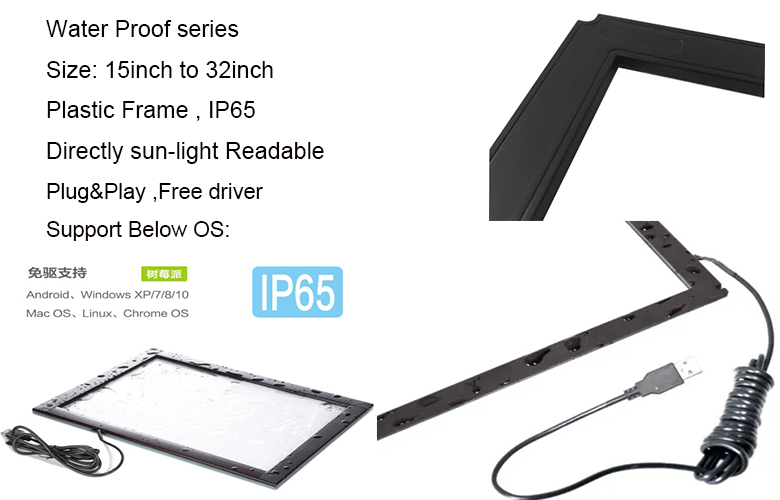

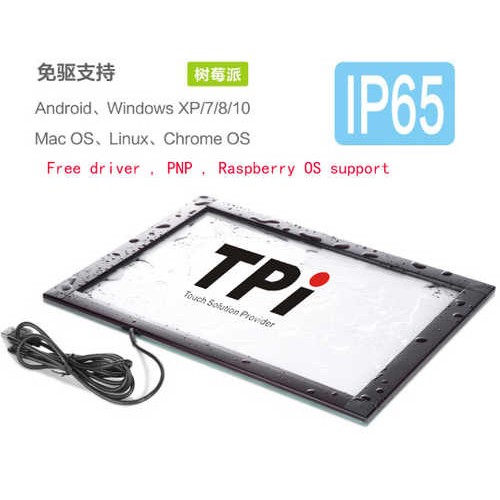

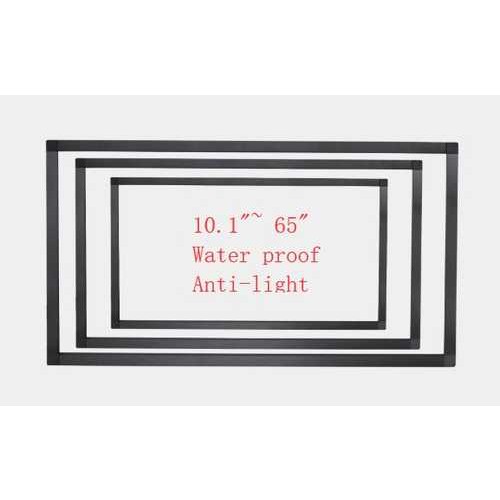

IP65 Plastic frame IR touch screen

IR touch panel  , IR touch frame  , touch overlay  , touch kit
Inquiry Send Email

Description


MECHANICAL
P/N PL Series IR Touch screen
Overlay Thickness 8 mm
Glass thickness 3mm vandal proof glass

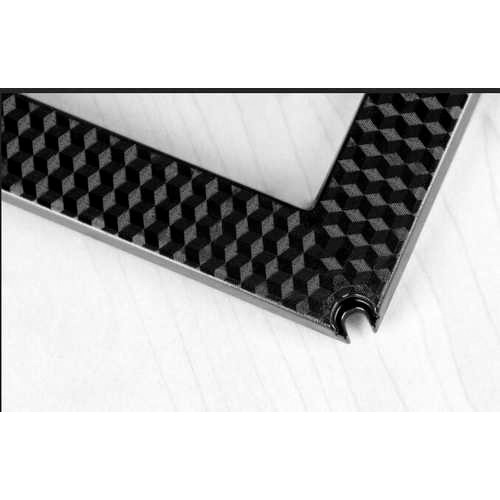

Housing Plastic frame
TOUCH CHARACTERISTICS
Input Method Finger or touch pen
Touch Points single touch , 2points , 4points , 6points and more
Touch Activation Force Non Minimum activation force
Position Accuracy 1mm
Resolution 4096(W)×4096(D)
Response Time Touch: 6ms
Drawing : 6ms
Cursor Speed 120 dot/sec
Glass 3mm glass Transparency : 92%
Object Touch Size ≥ Ø5mm
Touch Intensity Over 60 millions single touch
ELECTRICAL
Operating  Voltage DC 4.5V ~ DC 5.5V
Power 1.0W (100mA at DC 5V)
Anti -Static Discharge
(Standard :B)
Touch Discharge,Grade 2:Lab Vol 4KV
Air Discharge,Grade 3:Lab Vol 8KV
ENVIRONMENT
Temperature operating:-10 °C ~ 60 °C
storage:-30°C ~ 70 °C
Humidity operating:20% ~85%
storage:0%~95%
Relative Humidity 40 °C,90% RH
Anti - glare Test Incandescent lamp (220V,100W) ,
operating distance over 350mm
Altitude 3,000m
Interface USB2.0 full speed
Seal Ability IP64 Anti-Spill (Customizable to IP65 Waterproof)
Working Environment Directly Under sunlight ,indoor and outdoor
Application of Display Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks
Software(Firmware)
Operate system Windows 7,Windows 8,Windows 10, Andriod,Linux
Calibration No need calibration , plug and play
