Bally SG TwinStar Dual 24 inch Touch Screen

  1. Home
  2. Products
  3. Slot Parts & Casino Touch Monitor
  4. Slot Parts -Button Panel & iDeck touch monitor & Push button
  5. Bally SG TwinStar Dual 24 inch Touch Scr

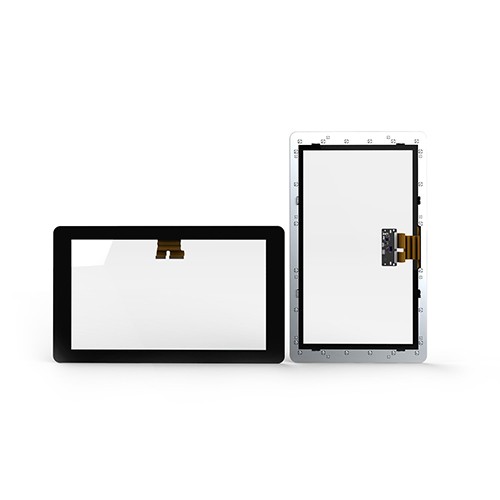

  • Bally SG TwinStar Dual 24 inch Touch Screen - Image 1
  • Bally SG TwinStar Dual 24 inch Touch Screen - Image 2
  • Bally SG TwinStar Dual 24 inch Touch Screen - Image 3
Bally SG TwinStar Dual 24 inch Touch Screen - Image 1 Bally SG TwinStar Dual 24 inch Touch Screen - Image 2 Bally SG TwinStar Dual 24 inch Touch Screen - Image 3

Bally SG TwinStar Dual 24 inch Touch Screen

  • Spec: Twinstar dual
  • Model: Twinstar 24inch
  • Material: 24inch touch panel
  • Packaging: Twinstar Main display
Tags
Twinstar Dual 24inch
Share
Get a Quote Send Email

Description


Bally TwinStar Dual 24inch Touch Screen & Controller

Model Number : TPC2382-V5GC
With the same dimensions as the original model, no matter Effinet Ssytem or Tovis ,  this capacitive touchscreen is specifically designed for upgrading and replacing the touch sensor on the Aristocrat Neptune VBD. It includes a controller.

Super slot part for repair , replacement 100% for long life time working from hardware and software , when you replace it , only need  put on ideck screen and plug in  cable ,start machine .

Easy work to save your time .


Technical parameters and characteristics:

Touch Technology
P-CAP
Touch Points
10Points(Max)
Touch Construction
G+G
Touch Cover
Glass T=1.8mm
Interface
USB-B Female RS232 DB9 Female
Luminousness
≥85%
Input Source
Finger
Touch Accuracy
2mm(Central), 2. 5mm(Edge)
Response Speed
<10ms
Supports OS
windows xp/7 /8/10, Linux, Android, macOS
Technical Service
customize protocol for USB and RS232 interface
Firmware Upgrade
Supports Upgrade Firmware Via RS232 And USB Interface
