Description

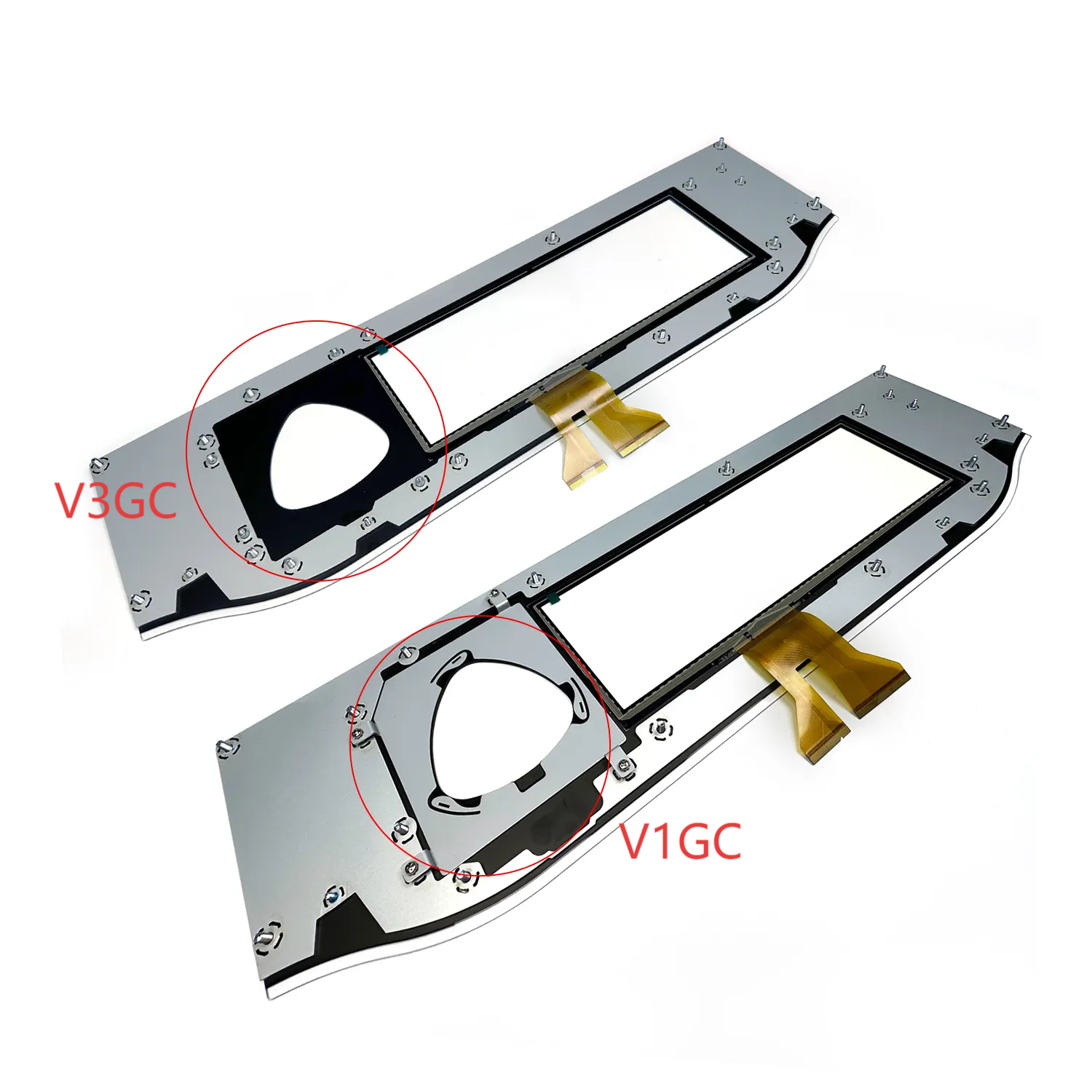

Model Number : TPC118F-V1GC/ V3GC
iDeck touch for Aristocrat Helix XT 11.8inch , it works well from hardware and software , when you replace it , only need put on our touch screen and plug in cable ,start machine .
Super slot part for repair , replacement 100% for long life time working. Easy work to save your time .
Technical parameters and characteristics：
Touch Technology
P-CAP
Touch Points
10Points（Max）
Touch Construction
G+G
Touch Cover
Glass T=1.8mm
Interface
USB-B Female RS232 DB9 Female
Luminousness
≥85%
Input Source
Finger
Touch Accuracy
2mm（Central）， 2. 5mm（Edge)
Response Speed
<10ms
Supports OS
windows xp/7 /8/10， Linux, Android, macOS
Technical Service
customize protocol for USB and RS232 interface
Firmware Upgrade
Supports Upgrade Firmware Via RS232 And USB Interface
