  • 23.8inch PCAP Touch Monitor
  • 23.8inch PCAP Touch Monitor
  • 23.8inch PCAP Touch Monitor
  • 23.8inch PCAP Touch Monitor
23.8inch PCAP Touch Monitor 23.8inch PCAP Touch Monitor 23.8inch PCAP Touch Monitor 23.8inch PCAP Touch Monitor

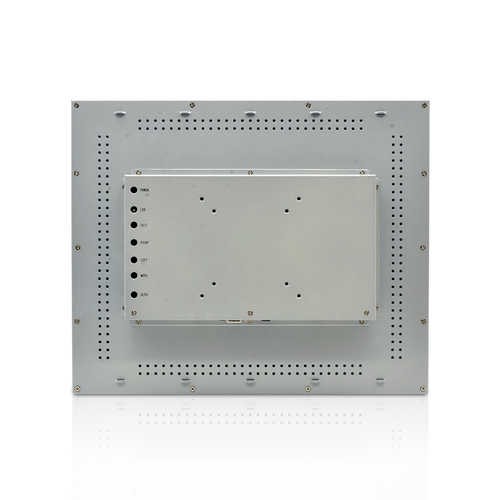

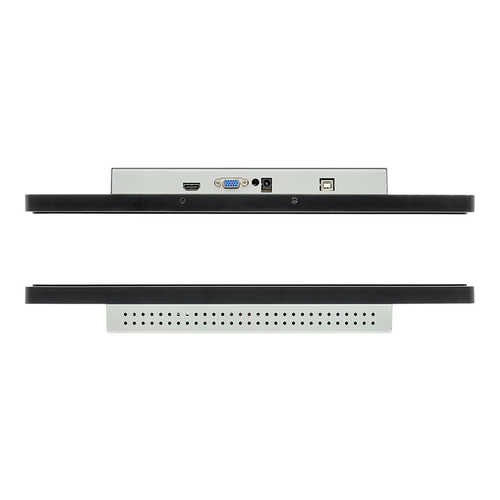

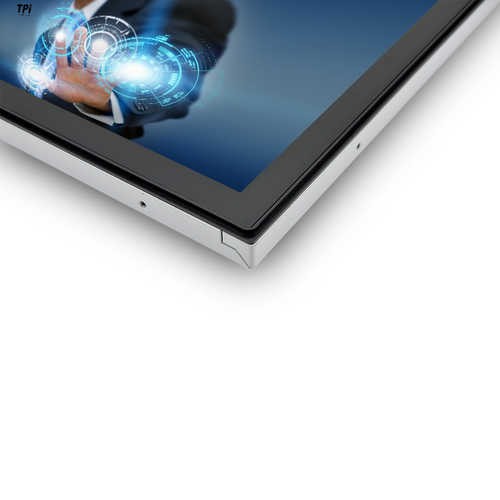

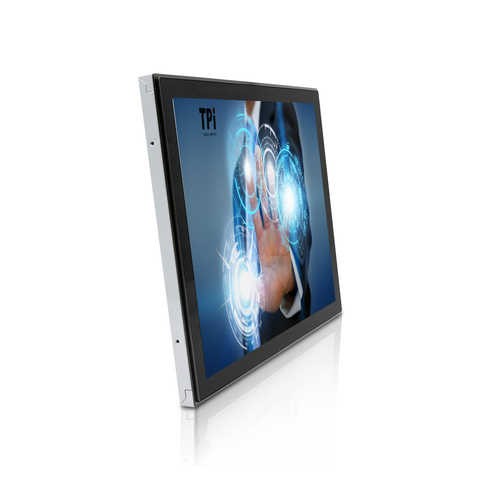

23.8inch PCAP Touch Monitor

touch monitor  , 23inch monitor  , touch display  , kortek 23inch  , bestech 23inch  , 3M touch
Inquiry Send Email

Description


Specification

Case/ frame color

Black color

Display type

Active matrix TFT LCD, LED backlight

Screen Diagonal

23.8"diagonal

Aspect ratio

16:9

Resolution(pixel)

1920*1080

Display Colors

16.7M

Brightness (Standard)(cd/m2)


LCD panel: 300 nits(Typ.)

Response time (standard)

5 ms

View Angle(from center)

Horizontal (left / right): ±89°
Vertical (up / down): ±89°

Contrast (standard)

1000: 1(Typ.)

Input video format

VGA and HDMI

Power consumption

Display only: 13.5W(Typ.)

Temperature

Operating: 0°C to 40°C; Storage: -20°C to 60°C

Humidity

Operating: 20% to 80% (no condensation); Storage: 10% to 90% (non-condensing)

MTBF

50,000 hours

Warranty

1 year

Screen Display (OSD)

Digital OSD

Mounting options

75mm VESA mounting


23inch , 23.6inch ,23,8inch are 23inch size series,  the suitable dimension , most used in Video
Lottery Terminal , Lottery Vending , Bingo , Sports Betting , Slot machine , also in Redemption Kiosk ,
Cash Kiosk , Vending Terminal machine etc.
There are few models for options , to meet different application .
