15.6inch PCAP Touch Monitor  15.6inch PCAP Touch Monitor  15.6inch PCAP Touch Monitor  15.6inch PCAP Touch Monitor

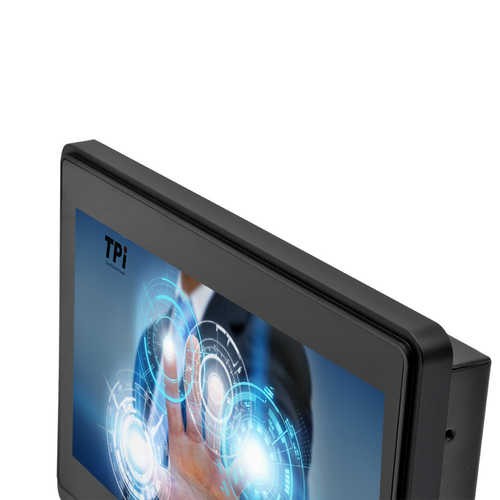

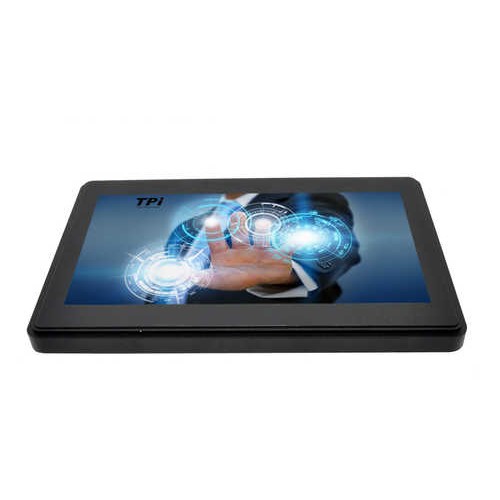

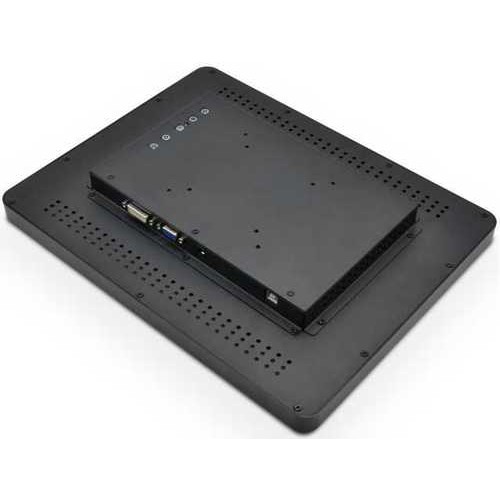

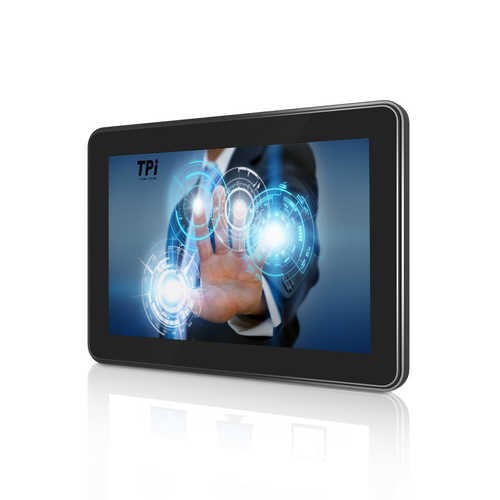

15.6inch PCAP Touch Monitor

touch monitor  , 15inch monitor  , tablet monitor
Inquiry Send Email

Description


Specification

Case/ frame color

Black color

Display type

Active matrix TFT LCD, LED backlight

Screen Diagonal

15.6 "diagonal

Aspect ratio

16:9

Resolution(pixel)

1366 x 768

Display Colors

16.7M

Brightness (Standard)(cd/m2)


LCD panel: 300 nits(Typ.)

Response time (standard)

5 ms

View Angle(from center)

Horizontal (left / right): ±85°
Vertical (up / down): ±80°

Contrast (standard)

400: 1(Typ.)

Input video format

VGA and HDMI

Power consumption

Display only: 13.5W(Typ.)

Temperature

Operating: 0°C to 40°C; Storage: -20°C to 60°C

Humidity

Operating: 20% to 80% (no condensation); Storage: 10% to 90% (non-condensing)

MTBF

50,000 hours

Warranty

1 year

Screen Display (OSD)

Digital OSD

Mounting options

75mm VESA mounting





Inquiry Us





Related Products

32inch PCAP touch screen  touch panel

32inch PCAP touch screen touch panel

32inch LED on front Touch monitor

32inch LED on front Touch monitor

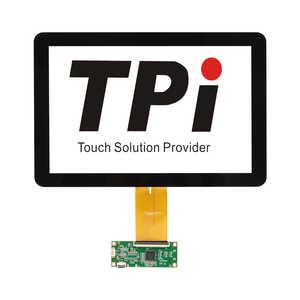

Projective Capacitive PCAP  Touch screen
