  • 15inch PCAP Touch Monitor
  • 15inch PCAP Touch Monitor
  • 15inch PCAP Touch Monitor
  • 15inch PCAP Touch Monitor
15inch PCAP Touch Monitor 15inch PCAP Touch Monitor 15inch PCAP Touch Monitor 15inch PCAP Touch Monitor

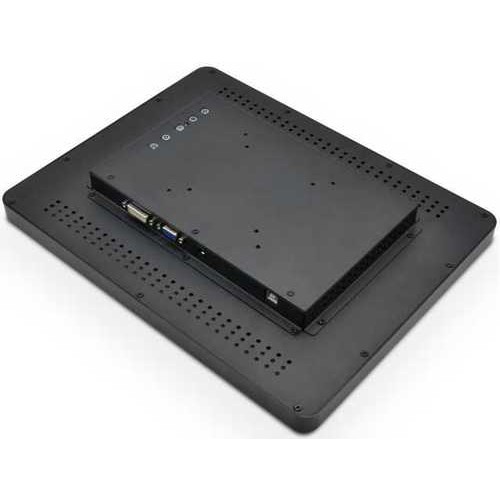

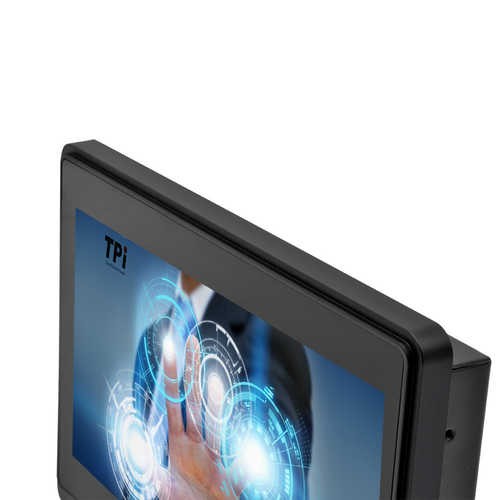

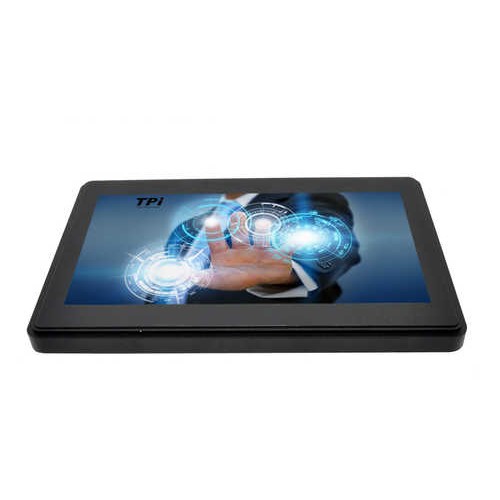

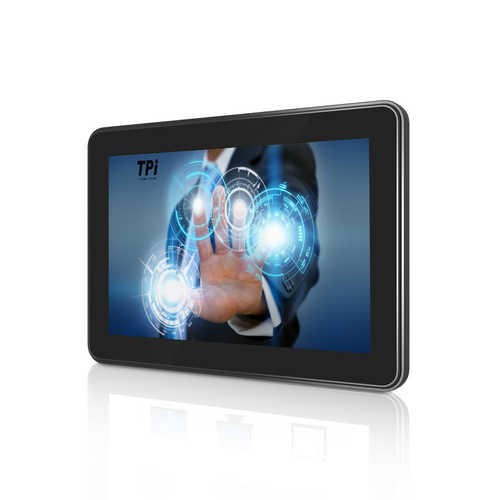

15inch PCAP Touch Monitor

touch monitor  , 15inch monitor  , tablet monitor
Inquiry Send Email

Description


Specification

Case/ frame color

Black color

Display type

Active matrix TFT LCD, LED backlight

Screen Diagonal

15 "diagonal

Aspect ratio

4:3

Resolution(pixel)

1024 x 768

Display Colors

16.7M

Brightness (Standard)(cd/m2)


LCD panel: 300 nits(Typ.)

Response time (standard)

5 ms

View Angle(from center)

Horizontal (left / right): ±85°
Vertical (up / down): ±80°

Contrast (standard)

800: 1(Typ.)

Input video format

VGA and HDMI

Power consumption

Display only: 13.5W(Typ.)

Temperature

Operating: 0°C to 40°C; Storage: -20°C to 60°C

Humidity

Operating: 20% to 80% (no condensation); Storage: 10% to 90% (non-condensing)

MTBF

50,000 hours

Warranty

1 year

Screen Display (OSD)

Digital OSD

Mounting options

75mm VESA mounting
