  • 15inch PCAP touch screen
  • 15inch PCAP touch screen
  • 15inch PCAP touch screen
  • 15inch PCAP touch screen
15inch PCAP touch screen 15inch PCAP touch screen 15inch PCAP touch screen 15inch PCAP touch screen

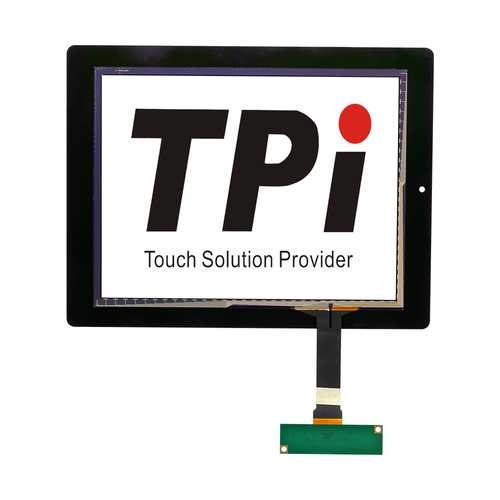

15inch PCAP touch screen

pcap touch screen  , touch panel  , projective capacitive touch
Inquiry Send Email

Description

TPI Tech Projected Capacitive (PCAP) touch technology which is a fast and sensitive, top grade in the line ,which is much reliability and long life time .

G+G Structure

Glass+Glass solution (G+G) offers optical clarity, high touch durability and  stability over temperature. Multi-touch 10points ,Zero-bezel , Silk screen can be customized with clients name, logo .

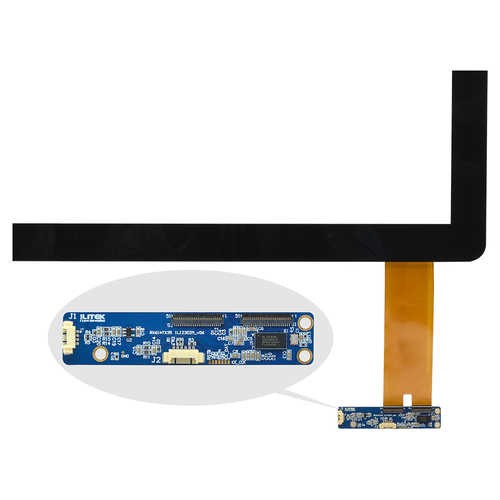

USB Touch interface with WEIDA ,ILITEK ,EETI controller for options .

Customization

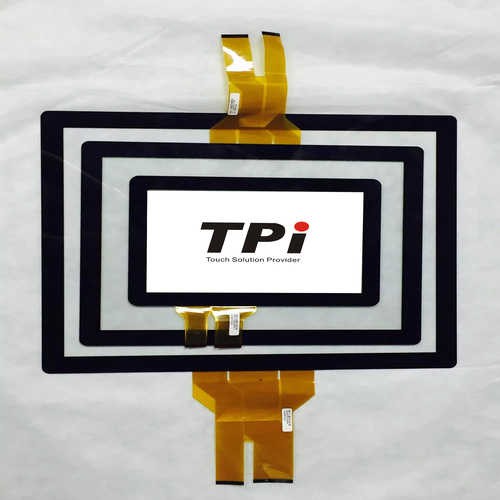

We offer customize on touch screen dimension , FPC cable location ,silk screen color , name , logo etc , cover glass thickness (1mm , 2mm ,3mm ,4mm even 5mm) , surface treatments ,glass anti-glare ..

Software compatible with 3M ,ELO ,or else development

Applications

Kiosk/ Self-service machine /Self Automation machine

Interactive/Information /Digital Signage Terminals

Gaming/Casino/Jackpot/Slot /Lottery machine

ATM/VTM/Metro Ticket Vending /Retail Machine

Medical equipment /Cinema getting Ticket /PIO machine

Industrial automation/Industrial panel PC


Technical specification
Type Projected touch panel
Interface USB
Number of touch point 10points
input voltage 5V ----
Pressure endurance value <10g
Input Hand writing or capacitive pen
Transmittance >90%
Surface Hardness ≥6H
Usage The specification is applied to transparent and handwriting input
capacitive touch panels
Application It's applied in ordinary electric equipments and automatic office facilities
Cover Lens Specification
Pressure Value 400 ~500 mPA above 6u
Ball Drop Test 130g±2g, 35cm, No damage after the impact at the central area for once.
Hardness ≥6H Pencil: 6H Pressure: 1N/45.
Environment
Working temperature and humidity -10~+60ºC, 20~85% RH
Storage temperature and humidity -10~+65ºC, 20~85% RH
Humidity resistance 85% RH, 120H
Heat resistance 65ºC, 120H
Cold resistance -10ºC, 120H
Thermal shock -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles
Anti - glare Test Incandescent lamp (220V,100W) ,
operating distance over 350mm
Altitude 3,000m
Working Environment Directly Under sunlight ,indoor and outdoor
Software(Firmware)
Scanning Auto full screen scanning
Operate system Win 7,Win 8,Win10, Andriod,Linux
Calibration tool If need Precalibrated & Software contact us
