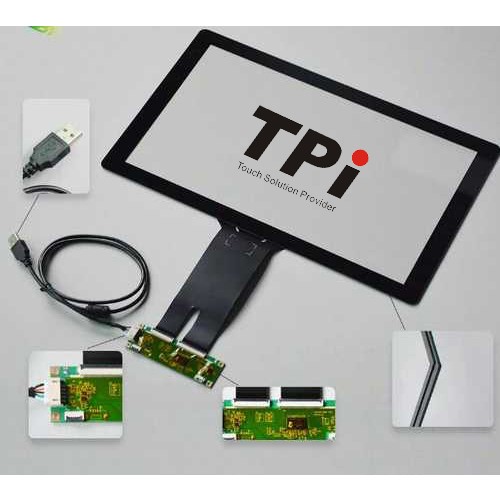

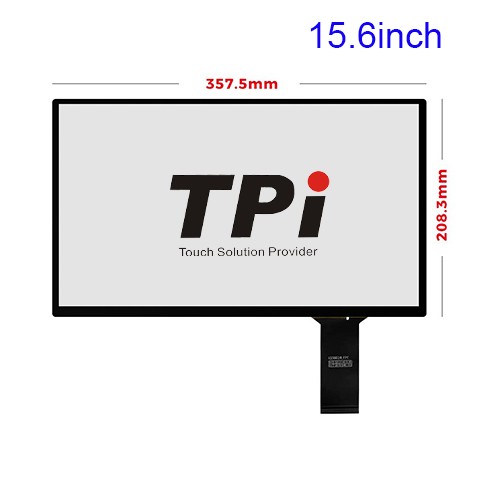

  • 15.6inch Ultra narrow edge PCAP touch panel
  • 15.6inch Ultra narrow edge PCAP touch panel
  • 15.6inch Ultra narrow edge PCAP touch panel
15.6inch Ultra narrow edge PCAP touch panel 15.6inch Ultra narrow edge PCAP touch panel 15.6inch Ultra narrow edge PCAP touch panel

15.6inch Ultra narrow edge PCAP touch panel

  • Product Item:PCAP
  • capacitive touch screen
  • pcap touch
  • pcap touch screen
  • touch panel
  • pcap touch screen  , touch panel  , projective capacitive touch
    Inquiry Send Email

    Description


    TPI Tech Projected Capacitive (PCAP) touch technology which is a fast and sensitive, top grade in the line ,which is much reliability and long life time .

    G+G Structure

    Glass+Glass solution (G+G) offers optical clarity, high touch durability and  stability over temperature. Multi-touch 10points ,Zero-bezel , Silk screen can be customized with clients name, logo .

    USB Touch interface with WEIDA ,ILITEK ,EETI controller for options .


    Customization

    We offer customize on touch screen dimension , FPC cable location ,silk screen color , name , logo etc , cover glass thickness (1mm , 2mm ,3mm ,4mm even 5mm) , surface treatments ,glass anti-glare ..

    Software compatible with 3M ,ELO ,or else development

    Applications

    Kiosk/ Self-service machine /Self Automation machine

    Interactive/Information /Digital Signage Terminals

    Gaming/Casino/Jackpot/Slot /Lottery machine

    ATM/VTM/Metro Ticket Vending /Retail Machine

    Medical equipment /Cinema getting Ticket /PIO machine

    Industrial automation/Industrial panel PC



    Technical specification
    Type Projected touch panel
    Interface USB
    Number of touch point 10points
    input voltage 5V ----
    Pressure endurance value <10g
    Input Hand writing or capacitive pen
    Transmittance >90%
    Surface Hardness ≥6H
    Usage The specification is applied to transparent and handwriting input
    capacitive touch panels
    Application It's applied in ordinary electric equipments and automatic office facilities
    Cover Lens Specification
    Pressure Value 400 ~500 mPA above 6u
    Ball Drop Test 130g±2g, 35cm, No damage after the impact at the central area for once.
    Hardness ≥6H Pencil: 6H Pressure: 1N/45.
    Environment
    Working temperature and humidity -10~+60ºC, 20~85% RH
    Storage temperature and humidity -10~+65ºC, 20~85% RH
    Humidity resistance 85% RH, 120H
    Heat resistance 65ºC, 120H
    Cold resistance -10ºC, 120H
    Thermal shock -10ºC(0.5hour)-60ºC(0.5hour) by 50 cycles
    Anti - glare Test Incandescent lamp (220V,100W) ,
    operating distance over 350mm
    Altitude 3,000m
    Working Environment Directly Under sunlight ,indoor and outdoor
    Software(Firmware)
    Scanning Auto full screen scanning
    Operate system Win 7,Win 8,Win10, Andriod,Linux
    Calibration tool If need Precalibrated & Software contact us
