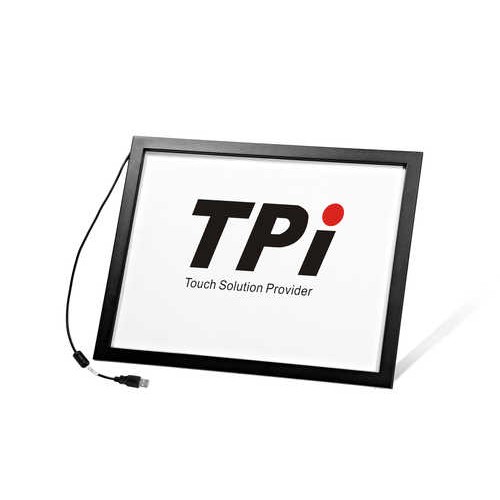

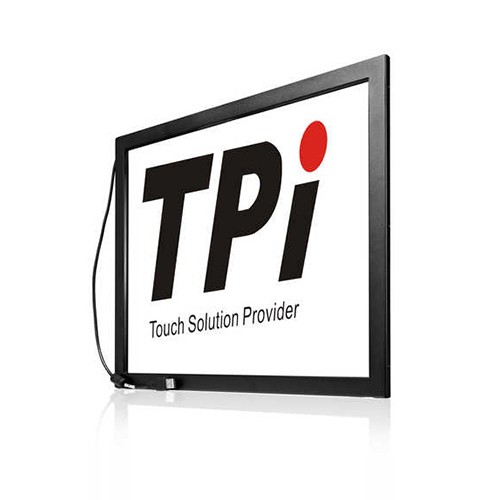

Aluminium IR Touch Screen Feature :

● Aluminium frame design Safe and Dustproof

● Standard 3mm vandal proof glass ( Without glass is available)

● Ultra thin & narrow frame, easy install ,integration.

● USB Touch interface, free driver for Windows , Linux. Plug & Play

● Size from 10.1inch to 75inch , customization is acceptable

● Support Single touch , 2points,4points 6points and 10points touch

Application:
Digital Signage; Information Kiosk; Self-service machine ,Exhibitions; TV Channels; Education Whiteboard;
Command Center and Boardroom; Commercial Transportation

MECHANICAL
P/N	AL Series IR Touch screen
Overlay Thickness	8 mm
Glass thickness	3mm vandal proof glass ( Without glass optional )

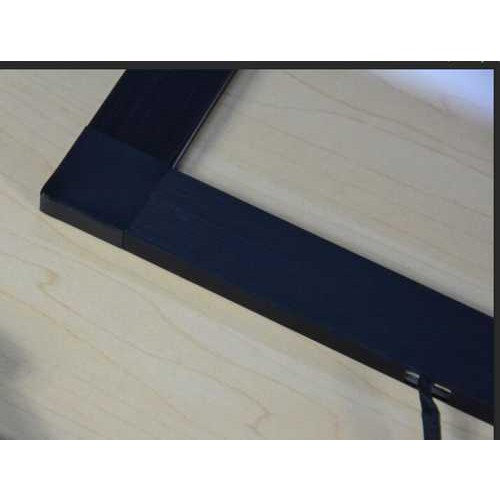

Housing	Aluminum frame
TOUCH CHARACTERISTICS
Input Method	Finger or touch pen
Touch Points	single touch , 2points , 4points , 6points and more
Touch Activation Force	Non Minimum activation force
Position Accuracy	1mm
Resolution	4096(W)×4096(D)
Response Time	Touch: 6ms
	Drawing : 6ms
Cursor Speed	120 dot/sec
Glass	3mm glass Transparency : 92%
Object Touch Size	≥ Ø5mm
Touch Intensity	Over 60 millions single touch
ELECTRICAL
Operating  Voltage	DC 4.5V ~ DC 5.5V
Power	1.0W (100mA at DC 5V)
Anti -Static Discharge (Standard :B)	Touch Discharge,Grade 2:Lab Vol 4KV
	Air Discharge,Grade 3:Lab Vol 8KV
ENVIRONMENT
Temperature	operating:-10 °C ~ 60 °C
	storage:-30°C ~ 70 °C
Humidity	operating:20% ~85%
	storage:0%~95%
Relative Humidity	40 °C,90% RH
Anti - glare Test	Incandescent lamp (220V,100W) , operating distance over 350mm
Altitude	3,000m
Interface	USB2.0 full speed
Seal Ability	IP64 Anti-Spill (Customizable to IP65 Waterproof)
Working Environment	Directly Under sunlight ,indoor and outdoor
Application of Display	Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks
Software(Firmware)
Operate system	Windows 7,Windows 8,Windows 10, Andriod,Linux
Calibration	No need calibration , plug and play
