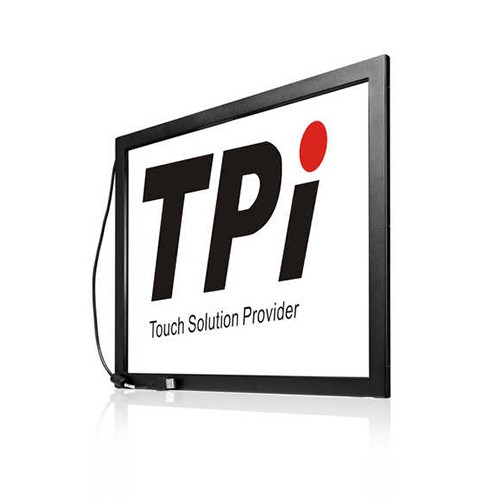

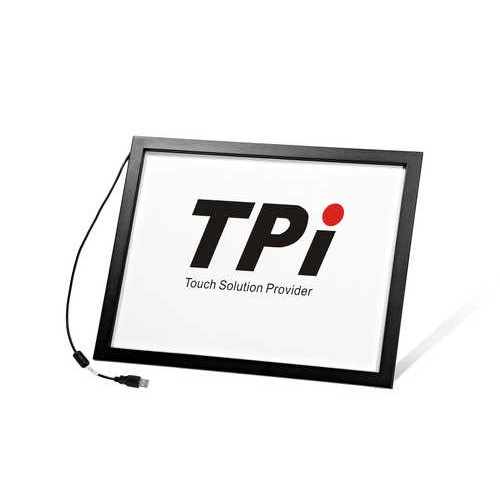

  • 24inch Infrared IR Touchscreen
  • 24inch Infrared IR Touchscreen
  • 24inch Infrared IR Touchscreen
  • 24inch Infrared IR Touchscreen
24inch Infrared IR Touchscreen 24inch Infrared IR Touchscreen 24inch Infrared IR Touchscreen 24inch Infrared IR Touchscreen

24inch Infrared IR Touchscreen

  • Product Item:ALIR
  • infrared touch
  • IR touch panel
  • touch frame
  • IR touch frame
  • IR touch panel  , IR touch frame  , touch overlay  , touch kit
    Inquiry Send Email

    Description


    Aluminium IR Touch Screen Feature :

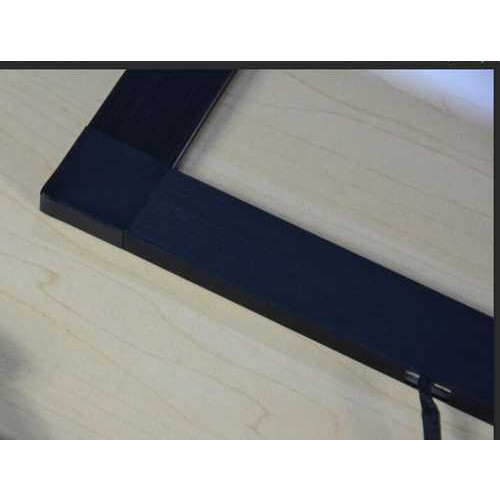

    ● Aluminium frame design Safe and Dustproof

    ● Standard 3mm vandal proof glass ( Without glass is available)

    ● Ultra thin & narrow frame, easy install ,integration.

    ● USB Touch interface, free driver for Windows , Linux. Plug & Play

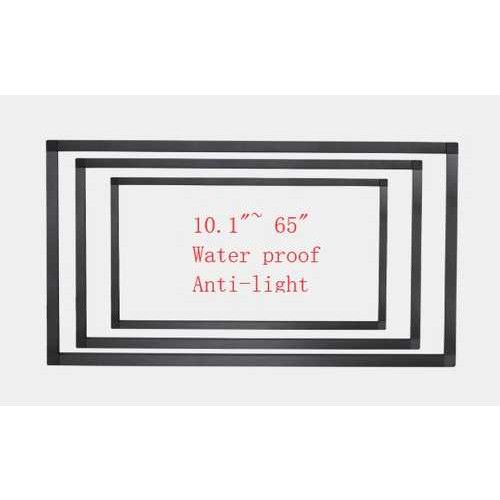

    ● Size from 10.1inch to 75inch , customization is acceptable

    ● Support Single touch , 2points,4points 6points and 10points touch


    Application:
    Digital Signage; Information Kiosk; Self-service machine ,Exhibitions; TV Channels; Education Whiteboard;
    Command Center and Boardroom; Commercial Transportation

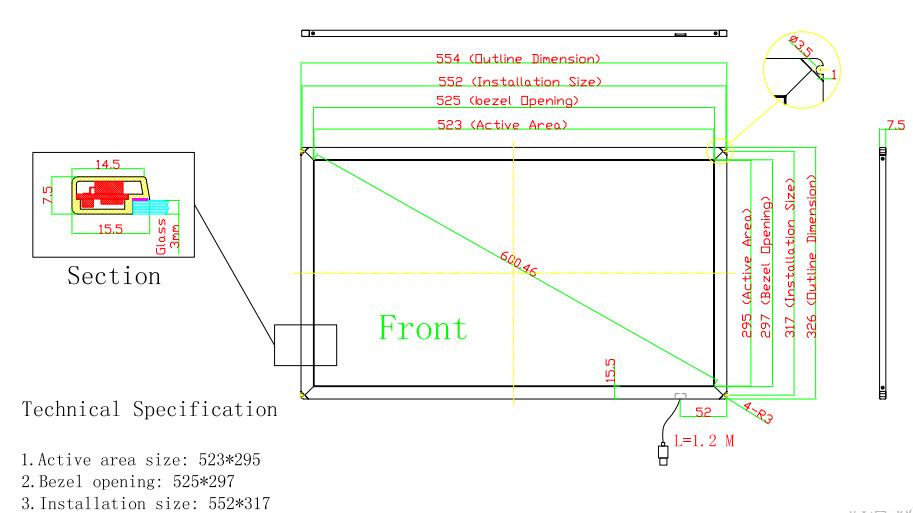

    MECHANICAL
    P/N AL Series IR Touch screen
    Overlay Thickness 8 mm
    Glass thickness 3mm vandal proof glass ( Without glass optional )
    Housing Aluminum frame
    TOUCH CHARACTERISTICS
    Input Method Finger or touch pen
    Touch Points single touch , 2points , 4points , 6points and more
    Touch Activation Force Non Minimum activation force
    Position Accuracy 1mm
    Resolution 4096(W)×4096(D)
    Response Time Touch: 6ms
    Drawing : 6ms
    Cursor Speed 120 dot/sec
    Glass 3mm glass Transparency : 92%
    Object Touch Size ≥ Ø5mm
    Touch Intensity Over 60 millions single touch
    ELECTRICAL
    Operating  Voltage DC 4.5V ~ DC 5.5V
    Power 1.0W (100mA at DC 5V)
    Anti -Static Discharge
    (Standard :B)
    Touch Discharge,Grade 2:Lab Vol 4KV
    Air Discharge,Grade 3:Lab Vol 8KV
    ENVIRONMENT
    Temperature operating:-10 °C ~ 60 °C
    storage:-30°C ~ 70 °C
    Humidity operating:20% ~85%
    storage:0%~95%
    Relative Humidity 40 °C,90% RH
    Anti - glare Test Incandescent lamp (220V,100W) ,
    operating distance over 350mm
    Altitude 3,000m
    Interface USB2.0 full speed
    Seal Ability IP64 Anti-Spill (Customizable to IP65 Waterproof)
    Working Environment Directly Under sunlight ,indoor and outdoor
    Application of Display Touch Screen Monitor/Touch Display/Touch LCD/ Touch Kiosks
    Software(Firmware)
    Operate system Windows 7,Windows 8,Windows 10, Andriod,Linux
    Calibration No need calibration , plug and play
