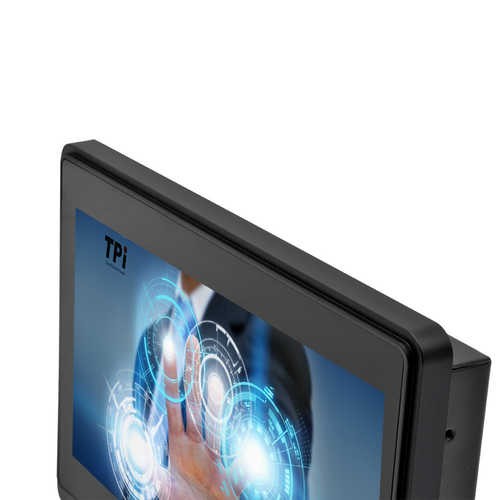

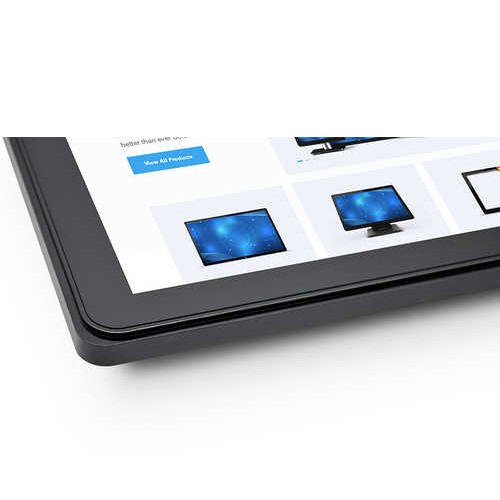

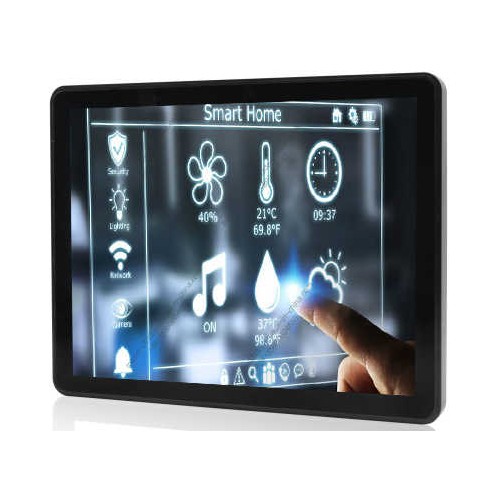

7inch Touch Monitor

  • Product Item:PCAP
  • capacitive touch screen
  • pcap touch monitor
  • pcap touch screen
  • open frame touch monitor
  • small size touch monitor  , 7inch monitor  , tablet monitor
    Inquiry Send Email

    Description

    TPI Tech Projected Capacitive (PCAP) touch technology which is a fast and sensitive, top grade in the line ,which is much  reliability and long life time .

    G+G Structure

    Glass+Glass solution (G+G) offers optical clarity, high touch durability and  stability over temperature. Multi-touch 10points ,Zero-bezel , Silk screen can be customized with clients name, logo .

    USB Touch interface with WEIDA ,ILITEK ,EETI controller for options .

    Customization

    We offer customize on touch screen dimension , FPC cable location ,silk screen color , name , logo etc , cover glass thickness (1mm , 2mm ,3mm ,4mm even 5mm) , surface treatments ,glass anti-glare ..

    Software compatible with 3M ,ELO ,or else development

    Applications

    Kiosk/ Self-service machine /Self Automation machine

    Interactive/Information /Digital Signage Terminals

    Gaming/Casino/Jackpot/Slot /Lottery machine

    ATM/VTM/Metro Ticket Vending /Retail Machine

    Medical equipment /Cinema getting Ticket /PIO machine

    Industrial automation/Industrial panel PC



    Specification

    Case/ frame color

    Black color

    Display type

    Active matrix TFT LCD, LED backlight

    Screen Diagonal

    7 "diagonal

    Aspect ratio

    16:9

    Resolution(pixel)

    1024 x 600

    Display Colors

    16.7M

    Brightness (Standard)(cd/m2)


    LCD panel: 250 nits(Typ.)

    Response time (standard)

    5 ms

    View Angle(from center)

    Horizontal (left / right): ±85°
    Vertical (up / down): ±80°

    Contrast (standard)

    800: 1(Typ.)

    Input video format

    VGA and HDMI

    Power consumption

    Display only: 13.5W(Typ.)

    Temperature

    Operating: 0°C to 40°C; Storage: -20°C to 60°C

    Humidity

    Operating: 20% to 80% (no condensation); Storage: 10% to 90% (non-condensing)

    MTBF

    50,000 hours

    Warranty

    1 year

    Screen Display (OSD)

    Digital OSD

    Mounting options

    75mm VESA mounting
